MULTIROTOR
REPTILE-G550
Release time: 202108-30 Clicks: 155 span>

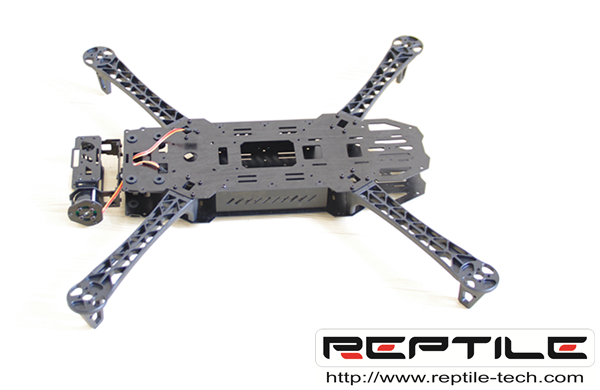

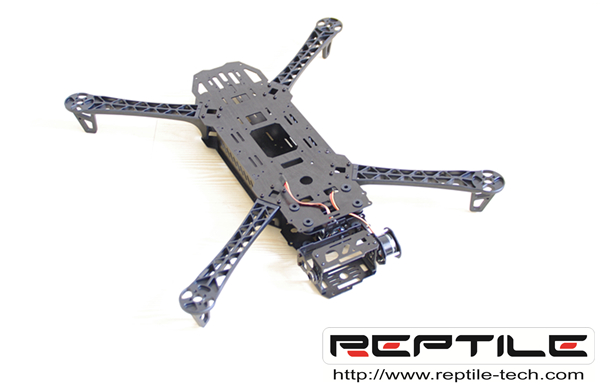

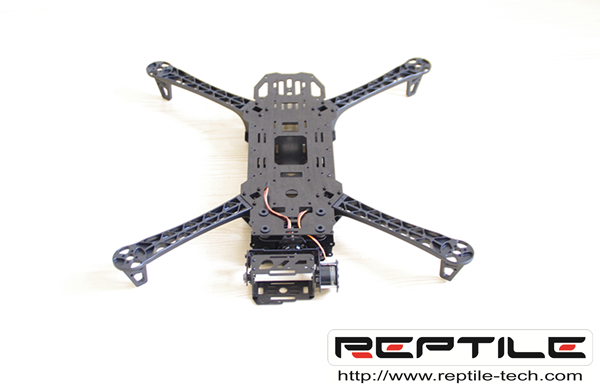

FPV REPTILE-550 550mm Carbon Fiber Alien Four-axis Aircraft Quadcopter Frame w/Two-axis Gimbal Combo
Features:
- 550mm wheelbase
- 1.5mm black carbon fiber CNC processing
- With two-axis brushless gimbal at front of frame, for Gopro 2/3 camera mount
- Compatible with multi gimbal mount plate and bar
Specification:
- Arm: 2.5mm install screws nylon arm
- Center plate: carbon fiber
- Wheelbase: 550mm
- Frame weight: 460g
- Take off weight: 1200-2000g
- Size: 397*130mm
- Frame space height 37mm, suit for 3S battery
- Propeller tip space: 12inch 84mm/13inch 58.7mm/14inch 33.3mm/15inch 7.5mm
Recommanded Configuration:
- 28** or above motors *4
- 12inch or above CW/CCW propeller *2 pair
- 20A or above ESC *4
controller not included
