MULTIROTOR
10 inch multi rotor frame
Release time: 202309-21 Clicks: 134 span>

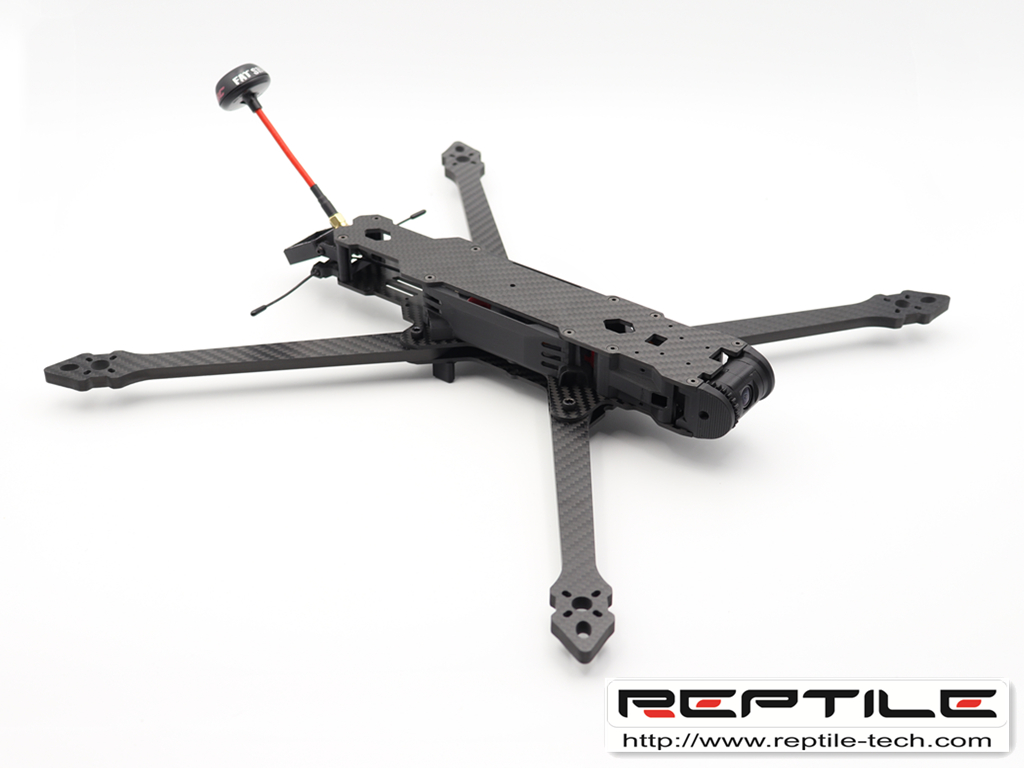

Product name: 10 inch multi rotor frame
Frame specification: X-type
Frame size: 350 * 350 * 52
Frame height: 52mm
Frame weight: 390g
Arm thickness: 7mm
Bottom plate thickness: 2.5mm
Medium plate thickness: 2.5mm
Upper plate thickness: 2.5mm
Diagonal distance of motor: 435mm
Flight control installation height: 25mm
Installation height of video transmitter: 25mm
Flight control installation hole spacing: 30.5 * 30.5mm
Motor installation hole spacing: 16 * 19mm
Video transmitter installation hole spacing: 30 * 30mm/19mm * 19mm
